Understanding the compatibility between SSDs (Solid State Drives) and motherboards is crucial for optimizing your computer's performance. This guide explores various aspects of SSD compatibility, including M.2 slots, PCIe lanes, BIOS updates, and NVMe benefits.

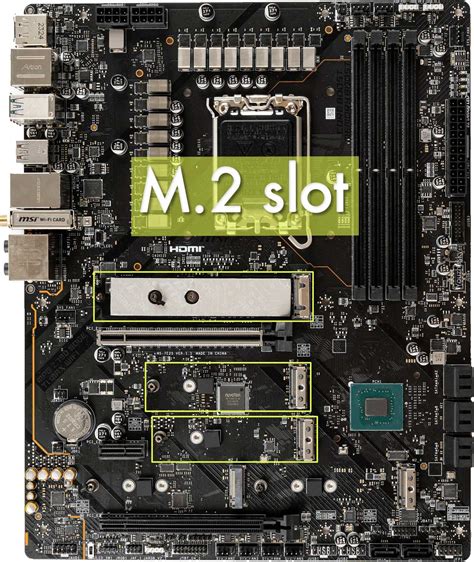

M.2 Slots and PCIe Lanes
Many modern motherboards feature M.2 slots, which allow for direct connection of SSDs, offering faster data transfer speeds compared to traditional SATA connections. However, not all M.2 slots are created equal. The number of PCIe lanes supported by the M.2 slot significantly impacts the SSD's performance.
For example, a motherboard might have an M.2 slot with 2x 2.0 PCIe lanes, which limits the potential speed of the SSD. In contrast, a motherboard with an "Ultra M.2" socket supporting 32Gb/s PCIe Gen3 x4 can fully utilize the capabilities of high-performance SSDs.
DMI and Data Flow
When considering M.2 slots with multiple PCIe lanes, it's essential to check how much DMI (Direct Media Interface) can handle the data flow. The DMI acts as a bridge between the CPU and the chipset, and its capacity can become a bottleneck if it's insufficient for the data transfer rates of the SSD.

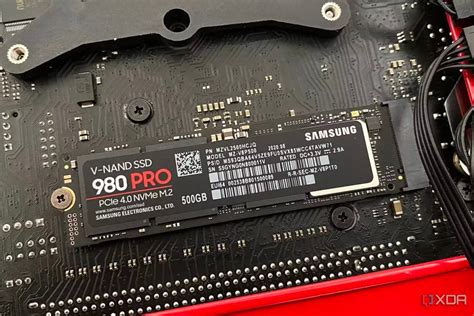

NVMe SSDs and Performance
NVMe (Non-Volatile Memory Express) SSDs are designed to take advantage of the PCIe interface, offering significantly higher speeds compared to SATA SSDs. However, the actual performance benefits of NVMe drives can vary depending on the specific use case.
Read also: Detailed Review of Arccos Golf
As one user noted, NVMe drives might not always provide a substantial benefit, especially if the system is CPU-limited. This means that the CPU's processing power becomes the bottleneck, rather than the SSD's read and write speeds.
NVME M.2 SSD Quick and Simple Install Guide
BIOS Updates and Compatibility
Compatibility issues can sometimes arise with newer SSDs on older motherboards. In such cases, BIOS updates can play a crucial role in resolving these issues. Motherboard manufacturers often release BIOS updates to improve compatibility with new hardware, including SSDs.
If you're considering using a newer SSD like the 960 EVO on an older motherboard, checking for available BIOS updates is a good first step. These updates might include the necessary drivers or firmware to ensure proper compatibility.
Real-World Considerations
Before purchasing an SSD, it's essential to consider your specific needs and system limitations. Factors such as the motherboard's M.2 slot configuration, PCIe lane support, DMI capacity, and CPU performance can all impact the overall performance of the SSD.
Read also: Apps for Oura Ring Users
Example Scenario: Broadwell 5775C and ASRock Motherboard
Consider a user with a Broadwell 5775C CPU (1150 socket) looking to install a 960 EVO SSD on an ASRock motherboard. The motherboard has an M.2 slot, but it only supports 2x 2.0 PCIe lanes. The ASRock motherboard has an Ultra M.2 socket 32gb/s pcie gen3 x4. To ensure compatibility and optimal performance, the user needs to verify:
- Whether the 960 EVO is a Gen3 SSD.
- How much DMI the motherboard can handle.
- If BIOS updates are available to improve compatibility.
Key Considerations for SSD Compatibility
Here's a table summarizing the key factors to consider when ensuring SSD compatibility with your motherboard:
| Factor | Description | Impact |
|---|---|---|
| M.2 Slot Type | Type of M.2 slot available on the motherboard (e.g., SATA, PCIe Gen3 x4) | Determines the maximum speed and type of SSD supported. |
| PCIe Lanes | Number of PCIe lanes supported by the M.2 slot (e.g., 2x, 4x) | Affects the data transfer rate and overall SSD performance. |
| DMI Capacity | Capacity of the Direct Media Interface | Can bottleneck the data flow if it's insufficient for the SSD's transfer rates. |
| BIOS Updates | Availability of BIOS updates from the motherboard manufacturer | Can improve compatibility with newer SSDs and resolve potential issues. |
| CPU Limitations | Processing power of the CPU | Can limit the benefits of a high-performance SSD if the system is CPU-bound. |
