When trying to install a Ryzen 5 5600X on an older board, a common issue is the system failing to POST, often resulting in a blue screen. The lesson is clear: the right motherboard is crucial for your build. This guide explores the best motherboards for the 5600X and its 3D V-Cache counterpart, the 5600X3D.
Why the Motherboard Matters
The Ryzen 5 5600X and 5600X3D are AM4 socket CPUs with six cores, twelve threads, and Zen 3 architecture. They have a 65W TDP and benefit from fast RAM. A weak motherboard can bottleneck performance. The motherboard keeps thermals low, RAM stable, and allows for future upgrades.
Quick Compatibility Check:
- Socket: AM4 only
- Chipset: B550 or X570 for PCIe 4.0
- BIOS: Ensure Ryzen 5000-ready or flash the BIOS
- RAM: DDR4-3200 minimum; 3600 is optimal
Always double-check the QVL list on the manufacturer's site to avoid RAM compatibility issues.
Top Motherboard Picks
These motherboards were tested with a 5600X3D in a Fractal mesh case, 32GB 3600 CL16 RAM, and an RTX 3070 for gaming, rendering, and overclocking.
Read also: 7800X3D Motherboard Compatibility

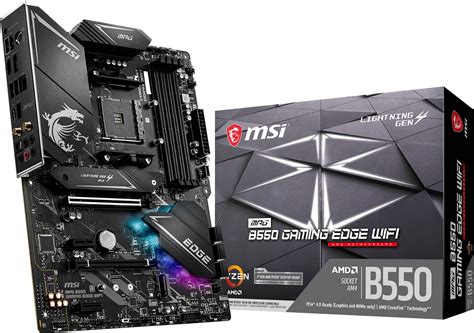

1. MSI MPG B550 Gaming Edge WiFi
This board features matte black heatsinks and subtle RGB lighting.
Key Features:
- ATX form factor
- 2.5G LAN + WiFi 6
- 12+2 DrMOS power stages
- Dual M.2 with one PCIe 4.0
- Mystic Light RGB
Best For: Gamers who want WiFi and creators who use Premiere and Valorant.
Pros:
- BIOS flashback button (no CPU needed for updates)
- Excellent VRM cooling for light PBO tweaks
- Pre-installed I/O shield
Cons:
Read also: Detailed Review of Arccos Golf
- Only one PCIe 4.0 M.2 slot
- RGB software can be moody on first boot
The 5600X3D was pushed to 4.6 GHz all-core with PBO, and VRM temps remained below 58 °C.
The MSI MPG B550 Gaming Edge WIFI Motherboard | Unboxing, Installation, & Review
2. ASUS ROG Strix B550-F Gaming (Wi-Fi)
The polished armor heatsink and RGB that syncs with your keyboard.
Key Features:
- ATX with PCIe 4.0 x16 slot
- Intel WiFi 6 + 2.5G Ethernet
- 14 power stages
- SupremeFX audio with Savitech amp
- Aura Sync RGB
Best For: Enthusiasts who tweak Curve Optimizer and love polished BIOS menus.
Read also: Apps for Oura Ring Users
Pros:
- AI overclocking works, adding 200 MHz with one click
- Beefy heatsinks handle 5600X PBO at 90 °C
- Q-LED diagnostics
Cons:
- Pricier than MSI
- Only two fan headers up top (use a splitter)
Paired with G.Skill 4000 CL16 RAM, it hit 1:1 IF without stability issues.

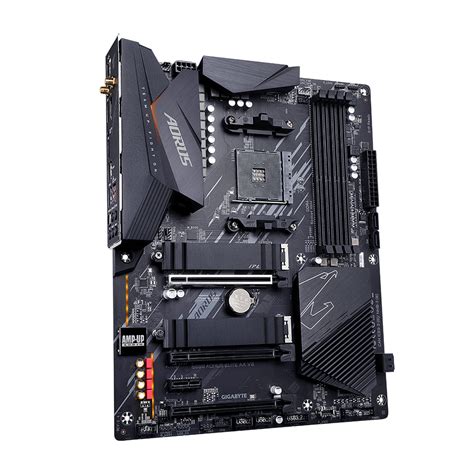

3. Gigabyte B550 AORUS Elite AX V2
This is a budget-friendly option that still offers modern features.
Key Features:
- ATX layout
- Realtek 2.5G LAN + WiFi 6
- 12+2 VRM with 50A stages
- Dual M.2 (one PCIe 4.0)
- Q-Flash Plus
Best For: First-time builders or those on a budget who want modern features.
Pros:
- Cheapest board with WiFi
- RGB Fusion 2.0 is stable
- Thermal pads are pre-applied to VRMs
Cons:
- Average audio (use a USB DAC)
- Fewer USB headers than ASUS
During an hour of Cinebench R23, VRM peaked at 62 °C.
Comparison Table
| Motherboard | Chipset | WiFi | M.2 Slots | VRM | Best For |
|---|---|---|---|---|---|
| MSI MPG B550 Gaming Edge WiFi | B550 | Yes | 2 | 12+2 DrMOS | Gamers, Creators |
| ASUS ROG Strix B550-F Gaming (Wi-Fi) | B550 | Yes | 2 | 14 Power Stages | Enthusiasts |
| Gigabyte B550 AORUS Elite AX V2 | B550 | Yes | 2 | 12+2 50A | Budget Builders |
Practical Tips
- BIOS Update: Use the flashback button even if the box says “Ryzen 5000 ready.”
- RAM Tuning: Enable XMP, then drop to 3600 MHz 1:1 if you chase latency.
- Cable Management: Route the 8-pin EPS above the board.
- Case Compatibility: All three are ATX. Measure if you’re going mATX.
FAQs
Q: Will a B450 board work?
A: Yes, but update the BIOS first. You lose PCIe 4.0, and some boards throttle power.
Q: X570 or B550?
A: B550 is enough. X570’s active chipset fan spins forever and adds cost. X570 is only needed for multi-GPU setups.
Q: Can I use the 5600X3D on these?
A: Yes. Same socket, same TDP. The 3D V-Cache benefits from fast secondary M.2 storage for game libraries.
Q: Is WiFi necessary?
A: Only if your router is far away. Otherwise, get the non-WiFi version.
Q: Future-proofing?
A: AM4 is end-of-life. These boards max it out. Next build = AM5.
